Adrien Broquet

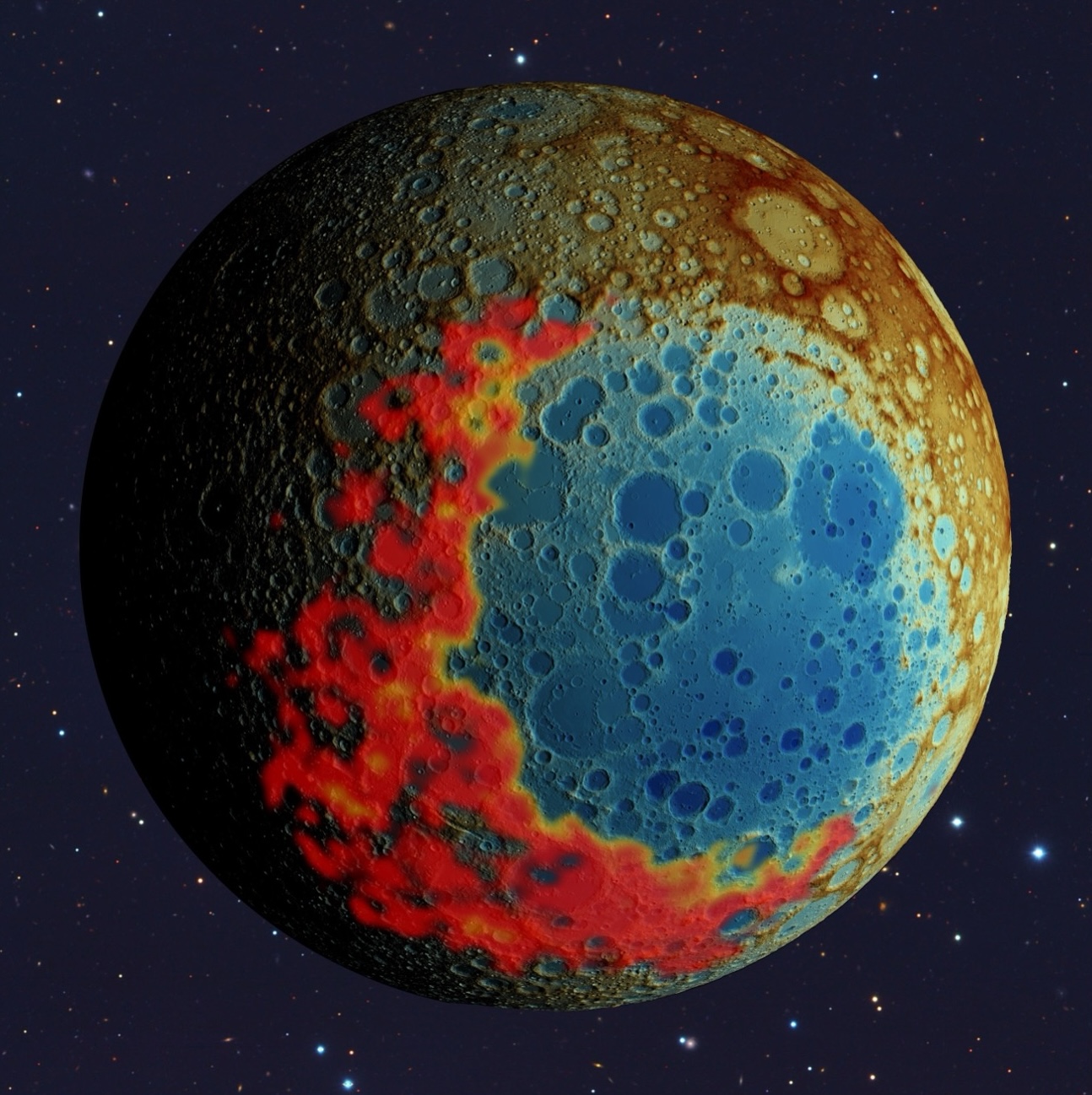

The ancient South Pole–Aitken impact basin provides a key data point for our understanding of the evolution of the Moon, as it formed during the earliest pre-Nectarian epoch of lunar history, excavated more deeply than any other known impact basin and is found on the lunar far side, about which less is known than the well-explored near side. Here we show that the tapering of the basin outline and the more gradual topographic and crustal thickness transition towards the south support a southward impact trajectory, opposite of that commonly assumed. A broad thorium-rich and iron-rich ejecta deposit southwest of the basin is consistent with partial excavation of late-stage magma ocean liquids. These observations indicate that thorium-rich magma ocean liquids persisted only beneath the southwestern half of the basin at the time of impact, matching predictions for the transition from a global magma ocean to a local enrichment of potassium, rare-earth elements and phosphorus (KREEP) in the near-side Procellarum KREEP Terrane. These results have important implications for the upcoming human exploration of the lunar south pole by Artemis, as proposed landing sites are now recognized to sit on the downrange rim and thorium-rich impact ejecta of the basin.

Abstract Understanding the structure and composition of planetary crusts is fundamental for unraveling the diverse geologic pathways of rocky bodies in the solar system. In recent years, geophysical missions have shed light on the crustal architecture of the Moon and Mars. New missions are currently en route to Mercury and in preparation for Venus. Here, we provide an overview of our current knowledge of the crustal structure of the Moon, Mars, Mercury and Venus, and present nominal models for these planets. Planetary crusts are thought to have average thicknesses of ∼20 km (Venus), ∼30 km (Mercury, Moon) and higher (30–70 km, Mars), and generally represent a few percent of the silicate mass fraction of their planet. In comparison, crustal thickness on Earth is bimodal, with values of 40 and 7 km for the continental and oceanic crusts, respectively, for a global average of ∼19 km. We highlight that gravity inversions must account for the often-uneven resolution of gravity fields and show that the classical Bouguer anomaly filtering step can be avoided by simultaneously inverting for crustal density and thickness. Rather than discarding data, this method ascribes short-wavelength gravity anomalies to crustal density variations. For Mercury, Venus, and the Moon, we discuss the effect of having a laterally variable mantle density on crustal thickness inversions, and for Mars, we present an approach to consider a high-density basaltic crust. While crustal thickness inversions remain non-unique, we discuss that the distribution of tectonic and volcanic landforms can help constrain the range of plausible models.

Investigating glacial isostatic adjustment has been the standard method to decipher Earth’s interior viscosity structure, but such an approach has been rarely applied to other planets because of a lack of observational data. The north polar cap of Mars is the only millions-of-years-old surface feature that can induce measurable surface deformation on this planet, thereby holding clues to its present-day internal viscosity structure. Here we investigate the emplacement of this ice cap by combining thermal evolution models, viscoelastic deformation calculations and radar observations. We show that downward motion of the northern regions is ongoing and can be constrained by analyses of the time-variable gravity field and NASA’s InSight seismic moment rate. Only models with present-day high viscosities (2–6 1022 Pa s for depths greater than 500 km), strong mantle depletion in radiogenic elements (more than 90%) and thick average crusts (thicker than 40 km) are consistent with the negligible flexure beneath the polar cap seen by radars. The northern lithosphere must deform at less than 0.13 mm per year and have a seismic efficiency less than 0.3 to satisfy gravity and seismic constraints, respectively. Our models show that the north polar cap formed over the last 1.7–12.0 Myr and that glacial isostatic adjustment can be further constrained by future gravity recovery missions to Mars.

Knowing the structure of the crust is critical to understanding a planet’s geologic evolution. Crustal thickness inversions rely on bulk density estimates, which are primarily affected by porosity. Due to the absence of high-resolution gravity data, Mercury’s crustal porosity has remained unknown. Here, we use a model that was calibrated to the Moon to relate Mercury’s impact crater population and long-wavelength crustal porosity in the cratered terrains. Therein, porosity is created by large impacts and then decreased as the surface ages due to pore compaction by smaller impacts and overburden pressure. Our models fit independent gravity-derived porosity estimates in the northern regions, where data is well resolved. Porosity in the cratered terrains is found to be 9%–18% with an average and standard deviation of 13% ± 2%, indicating lunar-like crustal bulk densities of 2,565 ± 70 kg m−3 from which updated crustal thickness maps are constructed.

The lunar crust and mantle formed through the crystallization of a magma ocean, culminating in a solid cumulate mantle with a layer of dense ilmenite-bearing cumulates rich in incompatible elements forming above less dense cumulates. This gravitationally unstable configuration probably resulted in a global mantle overturn, with ilmenite-bearing cumulates sinking into the interior. However, despite abundant geochemical evidence, there has been a lack of physical evidence on the nature of the overturn. Here we combine gravity inversions together with geodynamic models to shed light on this critical stage of lunar evolution. We show that the observed polygonal pattern of linear gravity anomalies that surround the nearside mare region is consistent with the signature of the ilmenite-bearing cumulates that remained after the global mantle overturn at the locations of past sheet-like downwellings. This interpretation is supported by the compelling similarity between the observed pattern, magnitude and dimensions of the gravity anomalies and those predicted by geodynamic models of the ilmenite-bearing cumulate remnants. These features provide physical evidence for the nature of the global mantle overturn, constrain the overturn to have occurred before the Serenitatis and Humorum basin-forming impacts and support a deep Ti-rich mantle source for the high-Ti basalts.

Although the majority of volcanic and tectonic activity on Mars occurred during the first 1.5 billion years of its geologic history, recent volcanism, tectonism and active seismicity in Elysium Planitia reveal ongoing activity. However, this recent pulse in volcanism and tectonics is unexpected on a cooling Mars. Here we present observational evidence and geophysical models demonstrating that Elysium Planitia is underlain by an  4,000-km-diameter active mantle plume head. Plume activity provides an explanation for the regional gravity and topography highs, recent volcanism, transition from compressional to extensional tectonics and ongoing seismicity. The inferred plume head characteristics are comparable to terrestrial plumes that are linked to the formation of large igneous provinces. Our results demonstrate that the interior of Mars is geodynamically active today, and imply that volcanism has been driven by mantle plumes from the formation of the Hesperian volcanic provinces and Tharsis in the past to Elysium Planitia today.

The volcanic and magmatic activity of the Moon is intimately tied to its internal thermal and geodynamic evolution through time. While the extrusive nearside maria dominate the volcanic record, little is known regarding their underlying structure and the details of their emplacement. Intrusive activity is even more enigmatic, with most intrusions expressing little to no surface signature. Although prior studies have provided insights into the local igneous activity, no global compilation has been conducted. Here, we present a volumetric inventory of extrusive and intrusive activity. Gravity and topography data are inverted using a two-layer loading model to constrain mare and cryptomare thickness. The mean thickness of mare units is found to be 2.8 km, though with substantial lateral variations, with average values of 7.9 km within large mare basins compared to 1.6 km outside of these basins. This substantial variation in mare thickness associated with minimal change in the surface topography may be explained by some combination of long-distance transport of low viscosity mare and/or a buoyancy control limiting mare eruptions to a constant level surface. Our preferred volumes of mare and cryptomare are 18.2×106 km3 and 2.2×106 km3, respectively. Crustal intrusions associated with linear gravity anomalies, floor-fractured craters, ring dikes, graben, and beneath volcanic constructs, are investigated and yield a total volume of 9.1×106 km3. Our inventory reveals that intrusive activity dominates in the farside (intrusive:extrusive ratio of 5:2), whereas extrusive volcanism is more pronounced in the nearside (1:5). The combined volume of intrusives and extrusives is found to be 3 times greater in the nearside than in the farside. Both are related to the lunar asymmetry in which the thinner crust and warmer subsurface beneath the Procellarum KREEP terrane enables enhanced melting and magma ascent. These observations may have implications for the interpretation of the thermal and geodynamic history of other celestial bodies, where intrusive volcanism remains poorly constrained.

The crust of the Moon experienced a unique geodynamic evolution, beginning with its crystallization from a magma ocean, continuing through a period of heavy impact bombardment, and followed by extensive basaltic mare volcanism. All these events have left crucial records imprinted in the form of topographic features and gravity anomalies. Here, we invert gravity and topography data using a two-layer thin-shell loading model under the premise of pre-mare isostasy to investigate the global structure of the crust and solve for feldspathic crust and mare thickness, together with mare-induced flexure. The tectonic record and partially buried crater population are used to constrain the bulk of mare volcanism to have been emplaced on a 40 km elastic lithosphere, although mare within large impact basins may have formed on a thinner elastic lithosphere. The mare thickness and associated flexure are removed to calculate a map of the surface and crust of the Moon before mare volcanism. The pre-mare surface in the Oceanus Procellarum region is found to be ∼2 km lower than the surrounding nearside, and several possible explanations, including a giant impact, pore space annealing, isostatic adjustment, and crustal erosion induced by a mantle plume or thermal anomaly, are discussed. The pre-mare elevation map further sheds light on the ring structure of Imbrium, which is seen to resemble that of Orientale. Imbrium’s outermost ring is observed to be at a larger radial distance to the northeast relative to the south, indicating that some level of lithospheric variability affected ring formation at the time of impact. The western part of Imbrium’s ring within Oceanus Procellarum is not found in the pre-mare topography, implying that it either never formed or that some processes erased its signature from gravity and topography. The feldspathic, pre-mare, crust is found to be ∼7 km thinner within large nearside basins than in models not accounting for the high-density mare. The pre-fill floor of these basins was ∼6 km deeper than currently observed, and together with their updated crustal structure, these new insights have implications for impact simulations that try to reproduce the crustal structure of nearside mare basins.
